Unistrut P7000: Industrial Framing's Heavy-Duty Solid Channel

If you're engineering a heavy support system, pipe rack, or equipment stand, the Unistrut P7000 channel is the backbone you can build on. Abhay Steels supplies genuine, high-strength P7000 channel that meets the toughest structural requirements. Here's what you need to know about it, from dimensions and load capacity to where it fits, plus a quick FAQ.

Unistrut P7000: What Is It?

Made of 12-gauge (2.7 mm) hot-rolled steel, the P7000 is a 2-1/2" x 2-1/2" solid metal framing channel with a back-to-back square profile. "Solid" refers to the absence of pre-punched holes or slots along the channel, making it perfect for tasks requiring complete flexibility, such as custom drilling and welding. It is compatible with all common Unistrut fittings and hardware and is a member of the Unistrut family.

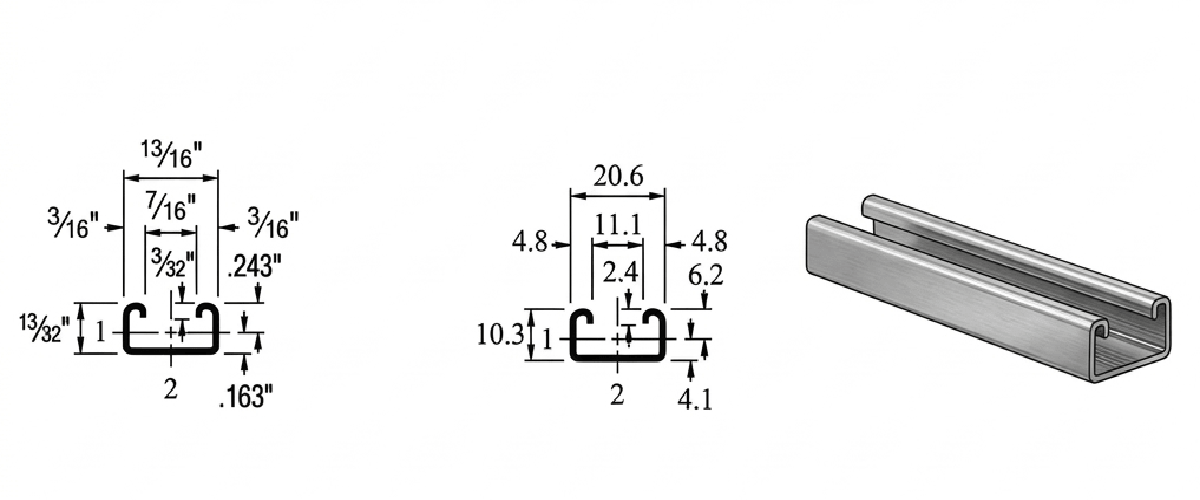

Unistrut P7000 Specification

Product	Unistrut P7000
Standard Length	Up to 12 meters
Width	13/16 inch (20.6 mm)
Height	13/32 inch (10.3 mm)
Wall Thickness	19 Gauge (0.040″ / 1.0 mm)
Allowable Moment	170 in-lbs (20 N·m)
Weight	25 lbs/100 ft (38 kg/100 m)
Material	Stainless Steel
Grades	Type 304, Type 316
Standard	ASTM A240

P7000 - Beam Loading (Imperial)

Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Uniform Loading at Deflection
Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Span/180 Lbs	Span/240 Lbs	Span/360 Lbs
18	80	0.12	60	50	30
24	60	0.22	40	30	20
30	50	0.36	20	20	10
36	40	0.50	20	10	10

P7000 - Beam Loading (Metric)

Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Uniform Loading at Deflection
Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Span/180 kN	Span/240 kN	Span/360 kN
300	0.5	1	0.5	0.5	0.4
450	0.4	3	0.3	0.2	0.1
600	0.3	5	0.2	0.1	0.1
750	0.2	9	0.1	0.1	0.0
1,000	0.2	16	0.0	0.0	0.0
1,250	0.1	24	0.0	0.0	NR
1,500	0.1	28	0.0	NR	NR

P7000 - Column Loading (Imperial)

Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	Maximum Column Load Applied at C.G.
Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	K = 0.65 Lbs	K = 0.80 Lbs	K = 1.0 Lbs	K = 1.2 Lbs
18	420	1,200	990	720	510
24	330	900	640	410	280
30	260	620	410	**	**
36	200	430	280	**	**

P7000 - Column Loading (Metric)

Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	Maximum Column Load Applied at C.G.
Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	K = 0.65 kN	K = 0.80 kN	K = 1.0 kN	K = 1.2 kN
300	2.1	6.4	6.0	5.3	4.5
450	1.9	5.4	4.5	3.3	2.3
600	1.5	4.1	2.9	1.9	1.3
750	1.2	2.8	1.9	1.2	**

P7000 - Elements of Section (Imperial)

Parameter	7000
Area of Section	0.074	In²
Axis 1-1
Moment of Inertia (I)	0.002	In⁴
Section Modulus (S)	0.007	In³
Radius of Gyration (r)	0.150	In
Axis 2-2
Moment of Inertia (I)	0.007	In⁴
Section Modulus (S)	0.017	In³
Radius of Gyration (r)	0.307	In

P7000 - Elements of Section (Metric)

Parameter	P7000
Area of Section	0.48	cm²
Axis 1-1
Moment of Inertia (I)	0.07	cm⁴
Section Modulus (S)	0.11	cm³
Radius of Gyration (r)	0.38	cm
Axis 1-1
Moment of Inertia (I)	0.29	cm⁴
Section Modulus (S)	0.28	cm³
Radius of Gyration (r)	0.78	cm

Benefits of Using Unistrut P7000

High load capacity: P7000 has one of the highest beam and column capacities in the Unistrut line thanks to its large 2-1/2" square profile and thick 12-gauge steel, making it suitable for seismic bracing and heavy-duty trapeze supports.
Solid design that is weld-friendly: no slots imply no weak spots. You may drill precisely where the project requires it after welding directly to the channel without losing strength.
Complete compatibility: saves time on-site by working with all Unistrut channel nuts, bolts, and pipe clamps.
Corrosion resistance: P7000 is resistant to corrosion in outdoor, chemical, and marine environments when finished in hot-dip galvanized or stainless steel.

Typical Uses

Conduit and pipe support trapezes
Bases and frames for heavy machinery
HVAC support systems and cable ladders
Structures for attaching solar panels
Overhead racks and seismic bracing
Conveyor stands and material handling

Get Reliable Unistrut P7000 Support Channels

In metal framing and structural channels, Abhay Steels is a reputable brand. If you purchase your P7000 from us, you will receive:

100% authentic, confirmed by the mill
Precise end finishing and custom cutting to length
Quick turnaround from ready stock in SS, HDG, and pre-galvanized finishes
Competitive factory-direct prices for large orders
Delivery and export assistance throughout India
Professional advice on channel design and selection
Abhay Steels supplies quality that maintains strength and accuracy, whether you need a single 10-footer or a full truckload of P7000.

FAQS

What are the Unistrut P7000's precise measurements?

Its dimensions are 2-1/2" x 2-1/2" (63.5 mm x 63.5 mm), and its walls are consistently 12-gauge (2.7 mm) thick. There are no slots in this sturdy, square back-to-back channel.

What distinguishes P7000 from P1000 Unistrut?

Dimensions and capacity. P7000 is significantly bigger at 2-1/2" x 2-1/2", whereas P1000 is a 1-5/8" x 1-5/8" channel. The P1000 would be too small for heavy industrial supports, but the P7000 can handle much larger loads.

Is it possible to purchase a Unistrut P7000 with holes or slots?

No. The solid, unslotted channel is designated P7000. You can consider a slotted version or a custom fabrication if you require a 2-1/2" x 2-1/2" channel with pre-punched holes. If the volume is suitable, we can set up slotting upon request.

What finishes does Abhay Steels offer for P7000 channels?

P7000 is available in Plain/Black, Hot-Dip Galvanized (HDG), and Pre-Galvanized (PG). You can order stainless steel 304 and 316. For outdoor or corrosive environments, choose SS or HDG.

How can I determine a P7000 strut's load capacity?

The span, kind of support (simple beam, cantilever, column), and method of applying the load all play a role. The official Unistrut General Engineering Catalog contains beam load tables, and our technical staff can offer safe load suggestions for your particular configuration.

How much does Unistrut P7000 cost, and does Abhay Steels deliver?

Finish, length, quantity, and current steel rates all affect pricing. For a fair quote on your P7000 demand, get in touch with Abhay Steels. With secure packaging and prompt shipping, we supply throughout India and export to many nations.
