Unistrut P3300

Abhay Steels' Superior Unistrut P3300 Strut Channels

Industry standard for versatile, high-quality metal framing is the Unistrut P3300. Based in Mumbai, Abhay Steels is an ISO-certified supplier and stockist that carries premium-grade P3300 channel constructed to meet the requirements of your project. Our framing solutions support and bear the weight of commercial infrastructure, data centres, and industrial buildings.

The Unistrut P3300: What is it?

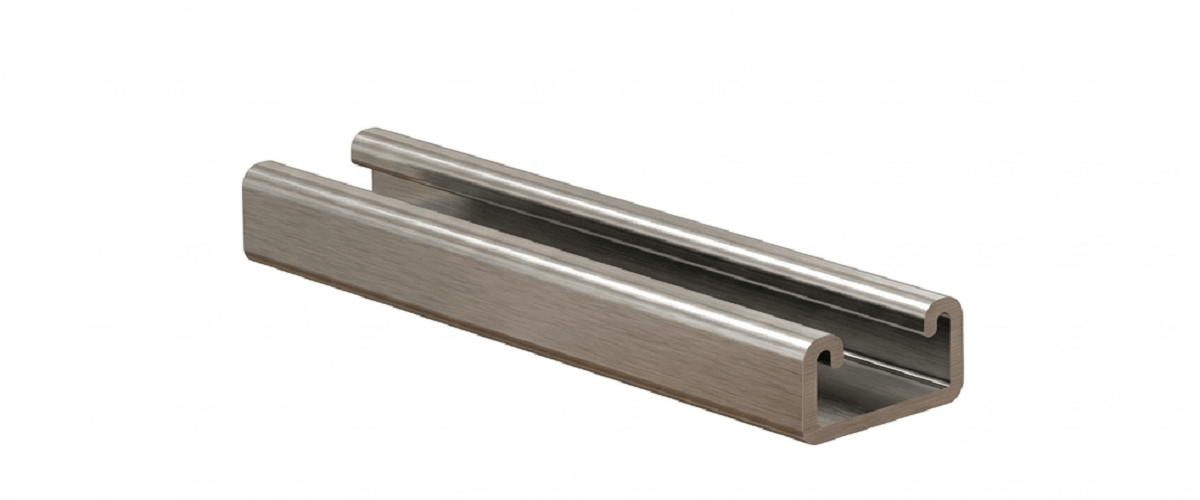

A low-profile metal framing strut is the P3300. Its heavy-duty 12-gauge (2.5mm) thickness and dimensions of 1-5/8" wide by 7/8" tall (41mm x 21mm) allow it to maintain strength in a small package. It is the best option when overhead space is limited but you still require a strong load capacity because of its shorter profile.

It is compatible with common Unistrut fittings, spring nuts, and hardware and is available in solid and slotted forms. The end product is a frame system that is completely reusable and simple to modify in the future.

Important Features and Details

To ensure that our P3300 channel operates as intended, we source and store it in accordance with international quality standards.

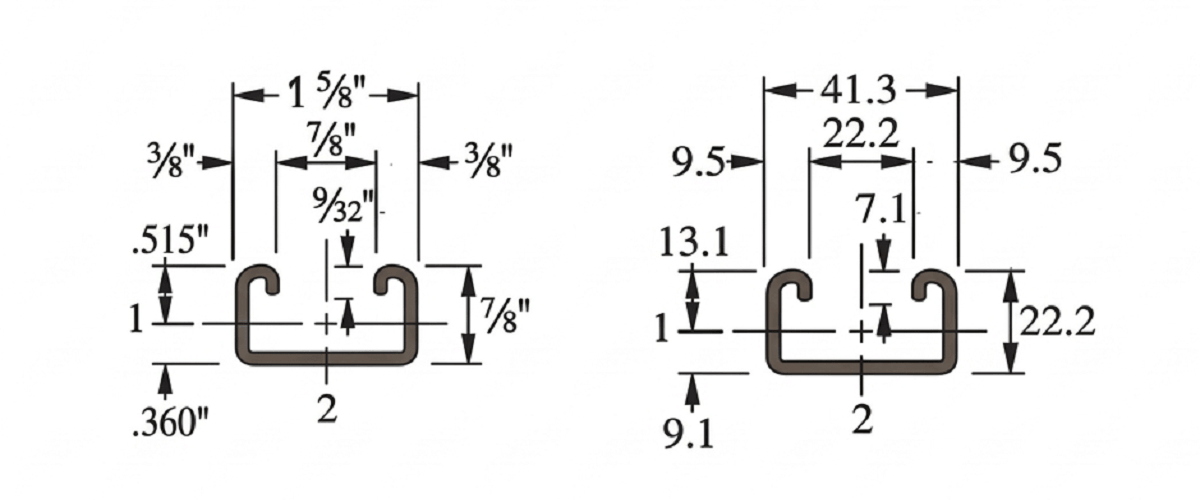

Measurements: 41 x 21 mm (1-5/8" x 7/8") profile with a wall thickness of 12 gauge (2.5 mm)

Material options include pre-galvanized and hot-dip galvanized finishes for affordable durability and premium stainless steel (Types 304 and 316) for superior rust resistance.

Simple installation: no special drilling or welding is required. You can bolt the entire thing together thanks to the continuous slot, which reduces labor costs and installation time.

Reusable: As your routeing or structural requirements change, you can reconfigure it because the modular design disassembles quickly.

Unistrut P3300 Specification

Product	Unistrut P3300
Standard Length	Up to 12 meters
Width	1-5/8 inches (41 mm)
Height	7/8 inches (22 mm)
Wall Thickness	12 Gauge (0.105″ / 2.7 mm)
Allowable Moment	1,800 in-lbs (200 N·m)
Weight	134 lbs/100 ft (200 kg/100 m)
Material	Stainless Steel
Grades	Type 304 (SS), Type 316 (ST)
Standard	ASTM A240

P3300 - Beam Loading (Imperial)

Span (in)	Max Allow. Uniform Load (lbs)	Deflection at Uniform Load (in)	Uniform Loading at Deflection
Span (in)	Max Allow. Uniform Load (lbs)	Deflection at Uniform Load (in)	Span/180 (Lbs)	Span/240 (Lbs)	Span/360 (Lbs)
24	600	0.10	600	600	400
36	400	0.22	360	270	180
48	300	0.40	200	150	100
60	240	0.62	130	100	60
72	200	0.89	90	70	40
84	170	1.20	70	50	30
96	150	1.59	50	40	30
108	130	1.96	40	30	20
120	120	2.48	30	20	20

3300 - Beam Loading (Imperial)

Span mm	Max Allow. Uniform Load kn	Deflection at Uniform Load mm	Uniform Loading at Deflection
Span mm	Max Allow. Uniform Load kn	Deflection at Uniform Load mm	Span/180 kn	Span/240 kn	Span/360 kn
600	2.7	2	2.7	2.7	1.9
750	2.2	4	2.2	1.8	1.2
1,000	1.6	7	1.3	1.0	0.7
1,250	1.3	10	0.8	0.6	0.4
1,500	1.1	15	0.6	0.4	0.3
1,750	0.9	21	0.4	0.3	0.2
2,000	0.8	27	0.3	0.3	0.2
2,500	0.7	43	0.2	0.2	0.1
3,000	0.5	60	0.1	0.1	0.1
3,500	0.4	79	0.1	0.1	NR

P3300 - Column Loading (Imperial))

Unbraced Height (in)	Maximum Allowable Load at Slot Face (lbs)	Max Column Load Applied at C.G.
Unbraced Height (in)	Maximum Allowable Load at Slot Face (lbs)	K=0.65 (lbs)	K=0.80 (lbs)	K=1.0 (lbs)	K=1.2 (lbs)
24	2,360	7,740	7,260	6,350	5,390
36	2,120	6,470	5,390	3,990	2,810
48	1,760	4,910	3,550	2,270	1,580
60	1,380	3,440	2,270	1,460	**
72	1,080	2,390	1,580	**	**

P3300 - Column Loading (Metric)

Unbraced Height mm	Maximum Allowable Load at Slot Face kn	Max Column Load Applied at C.G.
Unbraced Height mm	Maximum Allowable Load at Slot Face kn	K=0.65 kn	K=0.80 kn	K=1.0 kn	K=1.2 kn
600	10.5	34.6	32.6	28.6	24.4
750	10.1	32.3	28.6	23.3	18.2
1,000	9.1	26.9	21.6	15.0	10.5
1,250	7.6	21.2	15.0	9.6	6.7
1,500	6.3	15.8	10.5	6.7	**
1,750	5.1	11.6	7.6	**	**

P3300 - Elements of Section (Imperial)

Parameter	P3300
Area of Section	0.395	in²
Axis 1-1
Moment of Inertia (I)	0.037	in⁴
Section Modulus (S)	0.072	in³
Radius of Gyration (r)	0.306	in
Axis 2-2
Moment of Inertia (I)	0.143	in⁴
Section Modulus (S)	0.176	in³
Radius of Gyration (r)	0.601	in

P3300 - Elements of Section (Metric)

Parameter	P3300
Area of Section	2.55	cm²
Axis 1-1
Moment of Inertia (I)	1.54	cm⁴
Section Modulus (S)	1.18	cm³
Radius of Gyration (r)	0.78	cm
Axis 2-2
Moment of Inertia (I)	5.94	cm⁴
Section Modulus (S)	2.88	cm³
Radius of Gyration (r)	1.53	cm

Typical Uses

P3300 is a favorite for electrical and lightweight mechanical tasks due to its compact profile. Engineers and contractors employ the P3300 for the following purposes rather than aiming for a bulkier, deeper trench and overshooting the required load:

Cable tray supports, electrical conduit, and wiring routeing

Commercial lighting frameworks and suspended ceiling grids

HVAC ductwork bracing and trapeze pipe hangers

For vital mechanical infrastructure, seismic bracing

Personalized shelving, racking, and lightweight framing

FAQS

What distinguishes the Unistrut P1000 from the P3300?

It boils down to load capacity and height. Both are made of 12-gauge steel, however the P3300 is just 7/8" tall (a shallow, low-profile channel), and the P1000 is 1-5/8" tall (a deep channel). When space is limited and maximum heavy-duty weight capacity is not strictly necessary, the P3300 works well.

Is stainless steel an option for the Unistrut P3300?

Indeed. We provide the P3300 in 304 and 316 stainless steel. Chemical facilities, maritime environments, and highly exposed outdoor applications can all benefit from these grades' strong corrosion resistance.

Does the Unistrut P3300 require welding in order to be installed?

No. Spring nuts, threaded rods, bolts, and brackets power the whole Unistrut system, allowing connections to be assembled quickly and remain fully adjustable on-site.

Is it possible to cut the P3300 channel to specific lengths?

Indeed. Although we can provide precise custom-cut sizes to meet your technical and project requirements, standard factory lengths are 3 meters (10 feet) and 6 meters (20 feet).

Why Opt for Abhay Steels?

Abhay Steels is a reliable partner for structural framing and has been providing industrial metals for decades. Along with a variety of stainless steel sheets, plates, and structural elements, we have a sizable inventory of P3300 channel.

There is strict quality monitoring. Along with our deliveries, we provide third-party inspection reports and Mill Test Certificates (MTC). When you choose Abhay Steels, you will receive affordable prices, quick nationwide shipping from our Mumbai warehouse, and customer support that ensures your project is completed on time.
