Unistrut P4100

Abhay Steels Manufactures and Supplies Unistrut P4100 channels In India

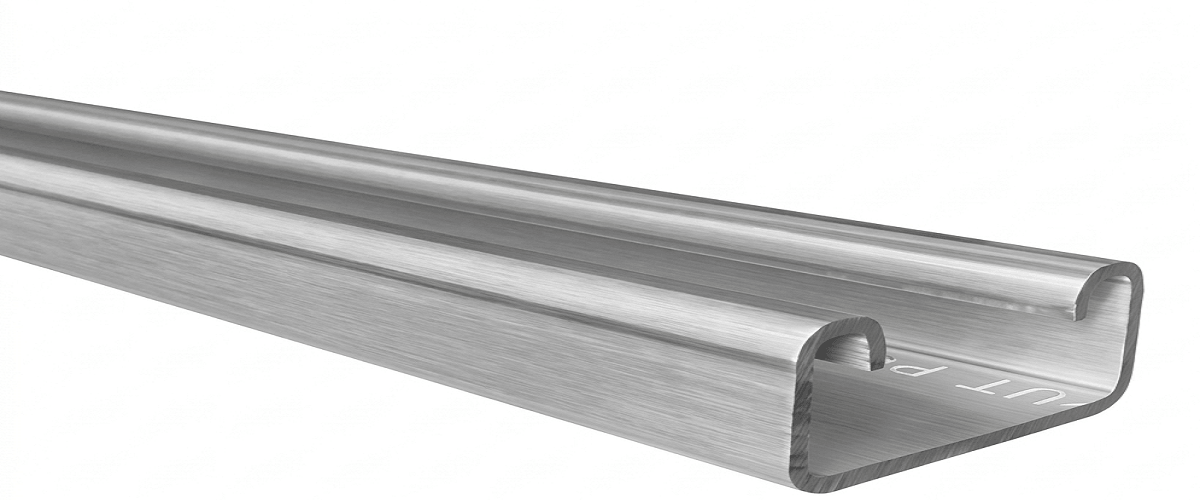

In India, Abhay Steels manufactures and supplies Unistrut P4100 channels with high-quality strut support systems for commercial, industrial, and infrastructural projects. With its compact profile and shallow strut channel, the P4100 offers exceptional strength, longevity, and installation flexibility. It frequently supports cable trays, conduits, pipelines, HVAC systems, electrical installations, solar mounting structures, and mechanical equipment.

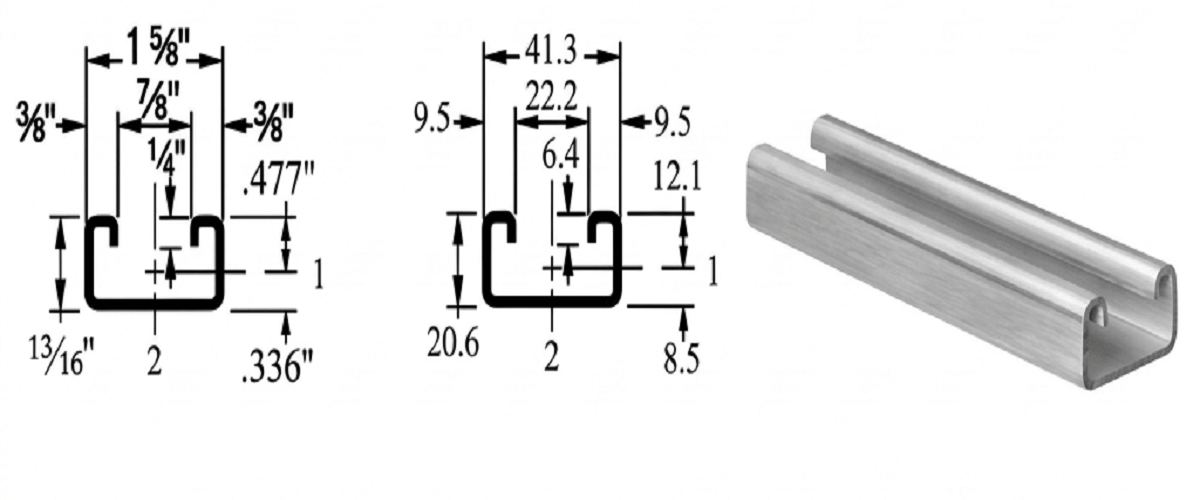

In 14-gauge steel, the P4100 channel is usually 1-5/8" wide and 13/16" deep, making it a suitable choice for medium-duty support where space is limited but the structure still needs to hold.

P4100 channels are made of high-grade steel that comes in various finishes, such as stainless steel, hot-dip galvanized, pre-galvanized, and powder-coated. Whether used indoors or outdoors, these treatments prevent corrosion and maintain the channel's functionality over time.

Unistrut P4100 Specification

Product	Unistrut P4100
Standard Length	Up to 12 meters
Width	1-5/8 inches (41.3 mm)
Height (Depth)	13/16 inches (20.6 mm)
Wall Thickness	14 Gauge (0.075″ / 1.9 mm)
Allowable Moment	1,360 in-lbs (150 N·m)
Weight	98 lbs/100 ft (147 kg/100 m)
Finishes	Plain (PL), Stainless Steel (SS), Galvanized (Pre-galvanized / Hot-dip), Aluminum (EA)
Material	Stainless Steel
Material Options	Type 304, Type 316

P4100 - Beam Loading (Imperial)

Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Uniform Loading at Deflection
Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Span/180 Lbs	Span/240 Lbs	Span/360 Lbs
24	450	0.11	450	420	280
36	300	0.24	250	190	130
48	230	0.44	140	110	70
60	180	0.67	90	70	50
72	150	0.96	60	50	30
84	130	1.32	50	30	20
96	110	1.67	40	30	20
108	100	2.16	30	20	10
120	90	2.67	20	20	10
144	80	4.09	20	NR	NR
168	60	4.88	NR	NR	NR
192	60	7.28	NR	NR	NR
216	50	8.64	NR	NR	NR
240	50	11.85	NR	NR	NR

P4100 - Beam Loading (Metric)

Span MM	Max Allowable Uniform Load MM	Defl. at Uniform Load MM	Uniform Loading at Deflection
Span MM	Max Allowable Uniform Load MM	Defl. at Uniform Load MM	Span/180 kN	Span/240 kN	Span/360 kN
600	2.0	3	2.0	2.0	1.3
750	1.6	4	1.6	1.2	0.8
1,000	1.2	7	0.9	0.7	0.4
1,250	1.0	11	0.6	0.4	0.3
1,500	0.8	16	0.4	0.3	0.2
1,750	0.7	23	0.3	0.2	0.1
2,000	0.6	30	0.2	0.2	0.1
2,500	0.5	46	0.1	0.1	0.1
3,000	0.4	65	0.1	0.1	NR

P4100 - Column Loading (Imperial)

Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	Maximum Column Load Applied at C.G.
Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	K = 0.65 Lbs	K = 0.80 Lbs	K = 1.0 Lbs	K = 1.2 Lbs
24	1,840	5,610	5,210	4,570	3,850
36	1,640	4,660	3,850	2,800	1,960
48	1,310	3,490	2,480	1,590	1,100
60	1,000	2,400	1,590	**	**
72	770	1,670	1,100	**	**

P4100 - Column Loading (Metric)

Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	Maximum Column Load Applied at C.G.
Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	K = 0.65 kN	K = 0.80 kN	K = 1.0 kN	K = 1.2 kN
600	8.2	25.1	23.3	20.6	17.4
750	7.8	23.2	20.6	16.6	12.8
1,000	6.9	19.3	15.3	10.5	7.3
1,250	5.6	15.0	10.5	6.7	4.7
1,500	4.5	11.0	7.3	4.7	**
1,750	3.6	8.1	5.3	**	**

P4100 - Elements of Section (Imperial)

Parameter	4100
Area of Section	0.290	In²
Axis 1-1
Moment of Inertia (I)	0.026	In⁴
Section Modulus (S)	0.054	In³
Radius of Gyration (r)	0.298	In
Axis 2-2
Moment of Inertia (I)	0.107	In⁴
Section Modulus (S)	0.132	In³
Radius of Gyration (r)	0.609	In

P4100 - Elements of Section (Metric)

Parameter	4100
Area of Section	1.87	cm²
Axis 1-1
Moment of Inertia (I)	1.07	cm⁴
Section Modulus (S)	0.88	cm³
Radius of Gyration (r)	0.76	cm
Axis 2-2
Moment of Inertia (I)	4.46	cm⁴
Section Modulus (S)	2.16	cm³
Radius of Gyration (r)	1.55	cm

Whether you need a standard P4100 channel or a customized support solution, Abhay Steels provides durable products tailored to your project.

Uses for Unistrut P4100

The P4100 is utilized in various sectors for:

Support for electrical conduits
Installations of cable trays
Support for HVAC ducts
Systems for hanging and supporting pipes
Frameworks for attaching solar panels
Support for industrial equipment
Infrastructure for data centers
Construction of commercial buildings

For Unistrut P4100, why pick Abhay Steels?

Abhay Steels provides precision-made strut channel systems that meet global quality requirements. Every product we sell has uniform dimensions, a clean finish, and dependable performance thanks to the efforts of our manufacturing staff.

We provide:

Personalized dimensions and requirements
supplies in bulk
Competitive rates
Quick delivery throughout India
Technical assistance and advice
Abhay Steels ensures strict quality assurance.

FAQS

Unistrut P4100: What is it?

A shallow strut channel supports electrical, mechanical, HVAC, plumbing, and cable management systems in commercial and industrial projects.

What are the P4100 channel's measurements?

14-gauge steel, about 1-5/8" wide and 13/16" deep.

Does P4100 channel come with a galvanized finish?

Indeed. Stainless steel, hot-dip galvanized, pre-galvanized, and other corrosion-resistant treatments are available.

Which sectors make use of Unistrut P4100?

P4100 strut channel is frequently used in manufacturing, telecommunications, solar energy, construction, power generation, and HVAC.

Is it possible for Abhay Steels to offer personalized P4100 channels?

Indeed. To fit your project, we provide bespoke lengths, finishes, and manufacturing.

What are the benefits of utilizing Unistrut P4100?

Long-term durability, a robust strength-to-weight ratio, ease of installation, modular design, and reduced fabrication time.

How can I obtain a Unistrut P4100 quote?

Send Abhay Steels your project details, quantity, and specs, and we'll provide you with a personalized quote and technical assistance.
