Unistrut P2000

Abhay Steels - Unistrut P2000 Channel Manufacturer & Supplier in India

Abhay Steels is a manufacturer & supplier of quality Unistrut P2000 channels for structural support in electrical, mechanical, industrial, and construction works. P2000 lends itself to cable trays, conduits, piping systems, HVAC equipment, solar mounting structures, and general framing.

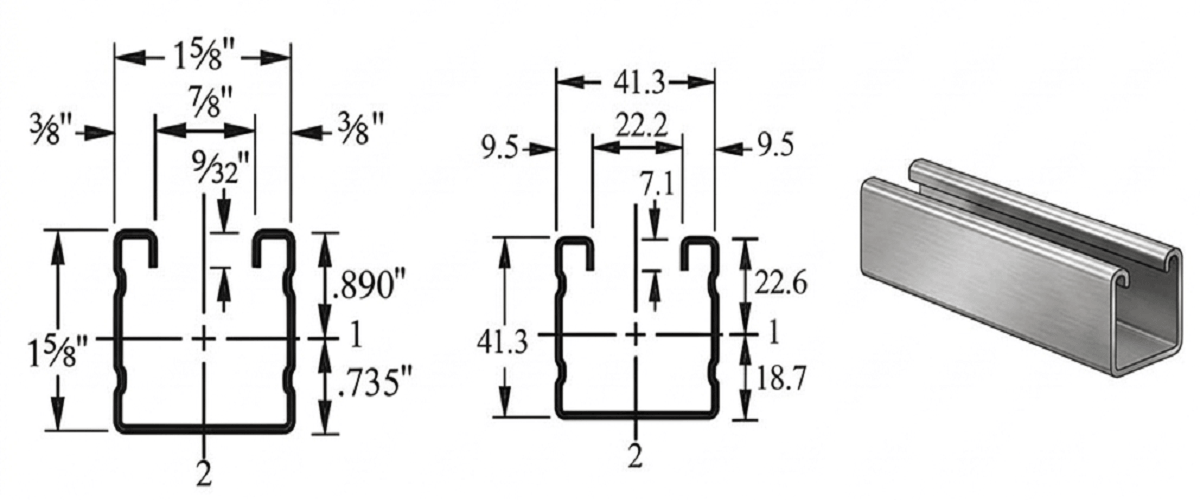

P2000 channel uses a standard 1-5/8” x 1-5/8” profile in 16-gauge steel, which provides a good balance of strength, durability, and cost. The design installs quickly with no welding or heavy fabrication, so labor cost and project time come down. P2000 series is available in different finishes, including pre-galvanized, hot-dip galvanized, powder-coated, and stainless steel for enhanced corrosion resistance.

We manufacture our P2000 channels from high-quality raw material on the latest production lines, so the dimensions remain true and the channel lasts. They are developed for challenging industrial conditions and heavy loads.

Unistrut P2000 Specification

Product	Unistrut P2000
Standard Length	Up to 12 meters
Width	1-5/8 inches (41.3 mm)
Height	1-5/8 inches (41.3 mm)
Wall Thickness	16 Gauge (0.060″ / 1.5 mm)
Allowable Moment	3,520 in-lbs (400 N·m)
Weight	116 lbs/100 ft (173 kg/100 m)
Finishes	Plain (PL), Stainless Steel (SS), Galvanized (Pre-galvanized / Hot-dip), Aluminum (EA)
Material	Stainless Steel Type 304 (SS), Type 316 (ST)
Standard	ASTM A240

P2000 - Beam Loading (Imperial)

Span In	Max Allowable Uniform Load Lb	Defl. at Uniform Load In	Uniform Loading at Deflection
Span In	Max Allowable Uniform Load Lb	Defl. at Uniform Load In	Span/180 Lbs	Span/240 Lbs	Span/360 Lbs
24	1,170	0.06	1,170	1,170	1,170
36	780	0.13	780	780	610
48	590	0.23	590	510	340
60	470	0.36	440	330	220
72	390	0.52	300	230	150
84	340	0.71	220	170	110
96	290	0.91	170	130	90
108	260	1.16	130	100	70
120	230	1.41	110	80	50
144	200	2.12	80	60	40
168	170	2.86	60	40	30
192	150	3.76	40	30	20
216	130	4.64	30	30	NR
240	120	5.88	30	NR	NR

We make our P2000 channels from premium-grade raw material on modern production lines, so the dimensions stay accurate and the channel lasts. They're built to hold up in tough industrial settings and carry high-load applications.

P2000 - Beam Loading (Metric)

Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Uniform Loading at Deflection
Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Span/180 kN	Span/240 kN	Span/360 kN
600	5.3	1	5.3	5.3	5.3
750	4.2	2	4.2	4.2	4.0
1,000	3.2	4	3.2	3.2	2.3
1,250	2.5	6	2.5	2.2	1.4
1,500	2.1	9	2.0	1.5	1.0
1,750	1.8	12	1.5	1.1	0.8
2,000	1.6	16	1.1	0.8	0.6
2,500	1.3	25	0.7	0.5	0.4
3,000	1.1	36	0.5	0.4	0.3
3,500	0.9	47	0.4	0.3	0.2
4,000	0.8	63	0.3	0.2	0.1
4,500	0.7	80	0.2	0.2	0.1
5,000	0.6	96	0.2	0.1	0.1
6,000	0.5	142	0.1	NR	NR

P2000 - Column Loading (Imperial)

Unbraced Height In	Maximum Allowable Load at Slot Face Lbs	Maximum Column Load Applied at C.G.
Unbraced Height In	Maximum Allowable Load at Slot Face Lbs	K = 0.65 Lbs	K = 0.80 Lbs	K =1.0 Lbs	K = 1.2 Lbs
24	2,400	6,650	6,080	5,280	4,470
36	2,050	5,380	4,470	3,370	2,500
48	1,600	4,090	3,040	2,100	1,590
60	1,230	2,960	2,100	1,500	1,160
72	970	2,190	1,590	1,160	910
84	790	1,720	1,270	950	760
96	660	1,410	1,060	800	650
108	570	1,200	910	700	**
120	510	1,040	800	620	**
144	420	830	650	**	**

P2000 - Column Loading (Metric)

Unbraced Height MM	Maximum Allowable Load at Slot Face kN	Maximum Column Load Applied at C.G.
Unbraced Height MM	Maximum Allowable Load at Slot Face kN	K = 0.65 kN	K = 0.80 kN	K =1.0 kN	K = 1.2 kN
600	10.7	29.8	27.3	23.8	20.2
750	10.1	27.0	23.8	19.3	15.3
1,000	8.5	22.3	18.0	12.9	9.6
1,250	6.9	17.6	12.9	9.0	6.8
1,500	5.6	13.5	9.6	6.8	5.2
1,750	4.6	10.5	7.6	5.5	4.3
2,000	3.8	8.5	6.2	4.6	3.6
2,250	3.3	7.1	5.2	4.0	3.2
2,500	2.8	6.1	4.6	3.5	2.8
2,750	2.5	5.3	4.1	3.1	**

Abhay Steels delivers quality strut channel systems for modern construction and industrial projects. We offer tailored lengths, competitive pricing, bulk supply, and timely delivery across India. Our team checks every product against strict quality standards, so it performs the way you expect on-site.

P2000 - Elements of Section (Imperial)

Parameter	P2000
Area of Section	0.342	In²
Axis 1-1
Moment of Inertia (I)	0.125	In⁴
Section Modulus (S)	0.140	In³
Radius of Gyration (r)	0.604	In
Axis 2-2
Moment of Inertia (I)	0.151	In⁴
Section Modulus (S)	0.186	In³
Radius of Gyration (r)	0.665	In

Whether it's a small install or a large industrial project, Abhay Steels supplies P2000 channel cut to your specs.

P2000 - Beam Loading (Metric)

Parameter	P2000
Area of Section	2.21	cm²
Axis 1-1
Moment of Inertia (I)	5.19	cm⁴
Section Modulus (S)	2.29	cm³
Radius of Gyration (r)	1.53	cm
Axis 2-2
Moment of Inertia (I)	6.29	cm⁴
Section Modulus (S)	3.05	cm³
Radius of Gyration (r)	1.69	cm

Applications of P2000 Strut Channel

The P2000 is widely used across a range of industries, including:

Electrical conduit support
Cable tray installations
HVAC duct support
Plumbing and piping supports
Solar panel mounting frameworks
Industrial equipment support
Warehouse storage systems
Commercial building infrastructure
Mechanical and MEP projects

FAQ

What is a Unistrut P2000 channel?

It's a 1-5/8" x 1-5/8" metal framing channel used to mount electrical, mechanical, and structural systems.

What material is used for P2000 strut channels?

Usually carbon steel, galvanized steel, or stainless steel, depending on the application.

Where is the P2000 channel used?

Cable tray support, conduit mounting, HVAC systems, piping, solar structures, and industrial framing.

Does Abhay Steels provide customized P2000 channel lengths?

Yes. We cut custom lengths and specs to match your project.

Is the P2000 strut channel suitable for outdoor applications?

Yes. Hot-dip galvanized and stainless steel P2000 channels resist corrosion well in outdoor and harsh conditions.

Can P2000 channels be installed without welding?

Yes. The system assembles with nuts, bolts, and fittings, so most jobs need no welding at all.
