Unistrut P6000

Abhay Steels offers high-quality Unistrut P6000 strut channels

For dependable support in mechanical, electrical, and industrial applications, Abhay Steels offers high-quality Unistrut P6000 strut channels. P6000 frequently constructs strong, movable frameworks for pipes, cables, trays, HVAC systems, solar structures, and manufacturing assembly. It is a popular choice in many different industries since it is adaptable, simple to install, and long-lasting.

P6000 channel is renowned for its high load-bearing strength, accurate profile, and compatibility with various channel accessories and fittings. Engineers, contractors, and fabricators can assemble adaptable support systems without the need for welding on each job. This allows for future modifications and saves time on tasks that require quick assembly.

The goal of Abhay Steels is to provide dependable products that satisfy industry standards for durability, strength, and quality. P6000 is useful and affordable whether you require a channel for utility support, structural framing, or cable management. It's a popular option when durability, alignment, and adjustability are all important.

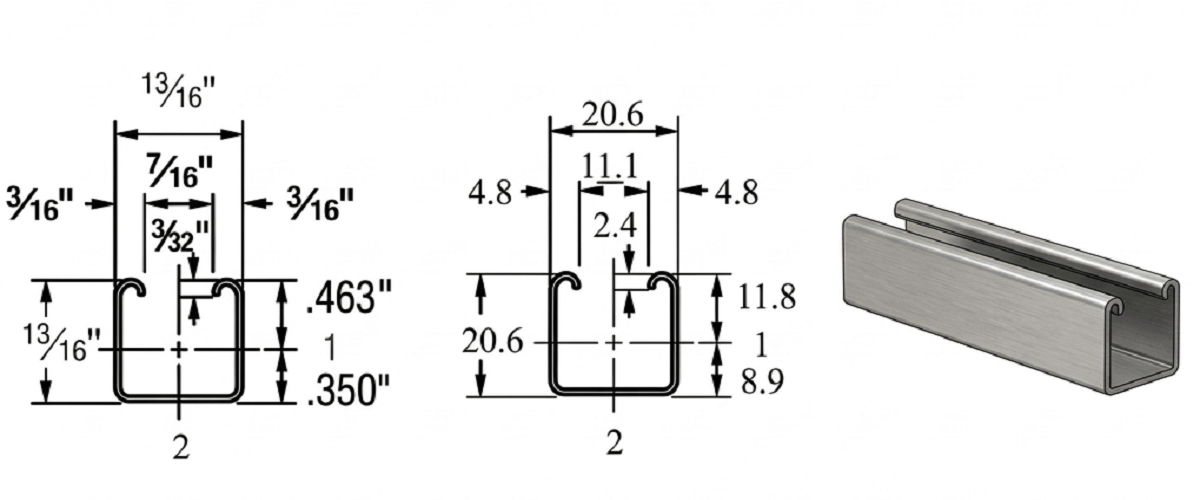

Unistrut P6000 Specification

Product	Unistrut P6000
Standard Length	Up to 12 meters
Width	13/16 inches (20.6 mm)
Height	13/16 inches (20.6 mm)
Wall Thickness	19 Gauge (0.040″ / 1.0 mm)
Allowable Moment	510 in-lbs (60 N·m)
Weight	36 lbs/100 ft (54 kg/100 m)
Material	Stainless Steel
Grades	Type 304 (SS), Type 316 (ST)
Standard	ASTM A240

One of the P6000's greatest advantages is its modular architecture. Easy assembly, repositioning, and expansion of components is very beneficial in dynamic industrial environments. The channel offers both light-duty and heavy-duty support, depending on the project and the accessories you choose.

P6000 - Beam Loading (Imperial)

Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Uniform Loading at Deflection
Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Span/180 Lbs	Span/240 Lbs	Span/360 Lbs
18	230	0.06	230	230	180
24	170	0.11	170	150	100
30	140	0.18	130	100	70
36	110	0.24	90	70	50
42	100	0.35	70	50	30
48	80	0.42	50	40	30
54	80	0.60	40	30	20
60	70	0.72	30	20	20
66	60	0.82	30	20	10
72	60	1.06	20	20	10

Abhay Steels supplies product expertise, material support, and reliable supply to help you select the best strut channel for customers looking for a reliable source. Contractors, OEMs, infrastructure projects, plant maintenance teams, and fabrication companies in need of a reliable support system can all benefit from the P6000.

P6000 - Beam Loading (Metric)

Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Uniform Loading at Deflection
Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Span/180 kN	Span/240 kN	Span/360 kN
300	1.5	1	1.5	1.5	1.5
450	1.0	2	1.0	1.0	0.8
600	0.8	3	0.8	0.7	0.5
750	0.6	4	0.6	0.4	0.3
1,000	0.4	7	0.4	0.3	0.2
1,250	0.4	11	0.2	0.2	0.1
1,500	0.3	17	0.1	0.1	0.1
1,750	0.3	24	0.1	0.1	0.0

P6000 from Abhay Steels is a good option if your project requires a robust, flexible, and well-engineered support channel. It is one of the more useful strut channel alternatives available because it works well, installs quickly, and fits a variety of jobs.

P6000 - Column Loading (Imperial)

Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	Maximum Column Load Applied at C.G.
Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	K = 0.65 Lbs	K = 0.80 Lbs	K = 1.0 Lbs	K = 1.2 Lbs
18	600	1,660	1,400	1,100	860
24	490	1,300	1,010	740	590
30	420	990	740	560	450
36	340	770	590	450	370
42	300	630	490	380	310
48	260	540	420	330	270
54	240	470	370	290	**
60	210	410	330	**	**
66	210	370	300	**	**
72	180	340	270	**	**

P6000 - Column Loading (Metric)

Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	Maximum Column Load Applied at C.G.
Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	K = 0.65 kN	K = 0.80 kN	K = 1.0 kN	K = 1.2 kN
300	3.1	9.2	8.4	7.3	6.3
450	2.7	7.5	6.3	5.0	3.9
600	2.2	5.9	4.6	3.4	2.7
750	1.8	4.5	3.4	2.5	2.0
1,000	1.4	3.0	2.4	1.8	1.5
1,250	1.1	2.3	1.8	1.4	1.2
1,500	0.9	1.9	1.5	1.2	**
1,750	0.8	1.6	1.2	**	**

P6000 - Elements of Section (Imperial)

Parameter	P6000
Area of Section	0.107	In²
Axis 1-1
Moment of Inertia (I)	0.009	In⁴
Section Modulus (S)	0.020	In³
Radius of Gyration (r)	0.295	In
Axis 2-2
Moment of Inertia (I)	0.012	In⁴
Section Modulus (S)	0.029	In³
Radius of Gyration (r)	0.333	In

P6000 - Elements of Section (Metric)

Parameter		P6000
Area of Section		0.69 cm²
Axis 1-1	Moment of Inertia (I)	0.39 cm⁴
	Section Modulus (S)	0.33 cm³
	Radius of Gyration (r)	0.75 cm
Axis 2-2	Moment of Inertia (I)	0.49 cm⁴
	Section Modulus (S)	0.48 cm³
	Radius of Gyration (r)	0.85 cm

Important Features

Robust, long-lasting support channel
Simple to install and modify
Adaptable to various fits and accessories
Suitable for commercial and industrial uses
Excellent for equipment support, pipelines, ducts, and cable trays

Uses

Systems for electrical support
HVAC and mechanical installations
Support for pipe and cable trays
Industrial fabrication and framing
Infrastructure and solar projects

FAQs

What is the purpose of the Unistrut P6000?

supporting equipment, trays, pipelines, wires, and modular framework systems in commercial and industrial applications.

Why pick Abhay Steels' Unistrut P6000?

For customers in need of a trusted strut channel, we provide stable supply, product support, and industrial-grade solutions.

How simple is it to install Unistrut P6000?

Indeed. It is designed to be quickly assembled and adjusted, reducing installation time and maintaining project flexibility.

Is it possible to use Unistrut P6000 for electrical projects?

Indeed. It is frequently utilized in conduit frameworks and cable trays, among other electrical support systems.

Which sectors make use of Unistrut P6000?

HVAC, electrical, mechanical, solar, infrastructure, manufacturing, and construction.
