Unistrut P4400

Abhay Steels' Superior Unistrut P4400 Channels

The industry standard for prefabricated structural support is the Unistrut P4400 channel. Abhay Steels supplies precision-made P4400 strut channels that meet the needs of contemporary commercial and industrial applications. The profile provides the strength and dependability required for the task, whether you're installing a lightweight framing system or fastening bulky electrical conduits.

The Unistrut P4400: What is it?

A low-profile metal framing channel is the P4400. It fits perfectly in situations when there is little space but the structure still needs to hold because of its shallower 1-inch height. It provides a sturdy modular platform for mounting pipes, cable trays, HVAC equipment, and architectural supports without the need for welding or drilling because it is constructed of 12-gauge steel.

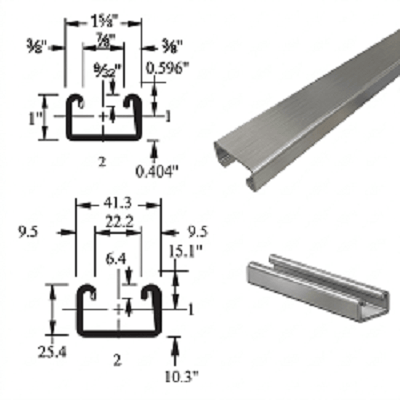

Unistrut P4400 Specification

Product	Unistrut P4400
Standard Length	Up to 12 meters
Width	1-5/8 inches (41 mm)
Height	1 inch (25 mm)
Wall Thickness	12 Gauge (0.105″ / 2.7 mm)
Allowable Moment	2,300 in-lbs (260 N·m)
Weight	144 lbs/100 ft (210 kg/100 m)
Material	Stainless Steel
Grades	Type 304, Type 316
Standard	ASTM A240

P4400 - Beam Loading (Imperial)

Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Uniform Loading at Deflection
Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Span/180 Lbs	Span/240 Lbs	Span/360 Lbs
24	770	0.09	770	770	580
36	510	0.20	510	390	260
48	380	0.35	290	220	150
60	310	0.56	190	140	90
72	260	0.80	130	100	60
84	220	1.08	90	70	50
96	190	1.39	70	50	40
108	170	1.78	60	40	30
120	150	2.15	50	30	20
144	130	3.22	30	20	20

P4400 - Beam Loading (Metric)

Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Uniform Loading at Deflection
Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Span/180 kN	Span/240 kN	Span/360 kN
600	3.5	2.2	3.5	3.5	2.7
750	2.8	3.4	2.8	2.6	1.7
1000	2.1	6.0	2.0	1.5	1.0
1250	1.7	9.3	1.3	1.0	0.6
1500	1.4	13.4	0.9	0.6	0.5
1750	1.2	18.6	0.6	0.5	0.3
2000	1.0	23.6	0.5	0.4	0.2
2500	0.9	38.1	0.3	0.2	0.1
3000	0.7	55.5	0.2	0.2	0.1
3500	0.6	71.6	0.2	0.1	0.1

P4400 - Column Loading (Imperial))

Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	Maximum Column Load Applied at C.G.
Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	K = 0.65 Lbs	K = 0.80 Lbs	K = 1.0 Lbs	K = 1.2 Lbs
24	2,620	8,280	7,760	7,140	6,580
36	2,470	7,210	6,580	5,310	4,030
48	2,180	6,200	4,870	3,280	2,280
60	1,770	4,760	3,280	2,100	**
72	1,420	3,450	2,280	**	**
84	1,150	2,530	1,670	**	**
96	**	1,940	**	**	**

P4400 - Column Loading (Metric)

Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	Maximum Column Load Applied at C.G.
Unbraced Height MM	Maxiumum Allowable Load at Slot Face kN	K = 0.65 kN	K = 0.80 kN	K = 1.0 kN	K = 1.2 kN
600	11.9	37.7	35.4	32.6	30.1
750	11.6	35.2	32.6	29.5	24.5
1000	10.9	31.5	27.9	21.3	15.3
1250	9.7	27.4	21.3	14.2	9.8
1500	8.2	22.1	15.3	9.8	**
1750	6.8	17.1	11.3	7.2	**
2000	5.7	13.1	8.6	**	**
2500	**	8.4	**	**	**

P4400 - Elements of Section (Imperial)

Parameter	4400
Area of Section	0.424	In²
Axis 1-1
Moment of Inertia (I)	0.053	In⁴
Section Modulus (S)	0.092	In³
Radius of Gyration (r)	0.354	In
Axis 2-2
Moment of Inertia (I)	0.161	In⁴
Section Modulus (S)	0.198	In³
Radius of Gyration (r)	0.616	In

P4400 - Elements of Section (Metric)

Parameter	4400
Area of Section	2.74	cm²
Axis 1-1
Moment of Inertia (I)	2.21	cm⁴
Section Modulus (S)	1.51	cm³
Radius of Gyration (r)	0.90	cm
Axis 2-2
Moment of Inertia (I)	6.70	cm⁴
Section Modulus (S)	3.24	cm³
Radius of Gyration (r)	1.57	cm

Why Buy from Abhay Steels?

Since its founding in 1983, Abhay Steels has grown to become one of Mumbai's most reputable providers of stainless and structural steel goods. Get your own channel from us, and you'll receive:

As an ISO-certified business, we provide Mill Test Certificates (MTCs) that attest to the quality and performance of our products.

Large inventory: We can quickly satisfy large orders thanks to our stockyards, which keeps your project going forward.

Custom finishes include superior 304 and 316 stainless steel for extremely corrosive environments in addition to regular pre-galvanized finishes.

On-time delivery: Your goods will arrive when you need them if you have a history of almost zero shipping faults.

Typical Industrial Uses

P4400 may be used for a variety of tasks since it strikes a balance between strength, weight, and low profile. Typical applications include the following:

Supporting cable trays, conduits, and lighting fixtures in commercial ceilings: electrical and data routeing

HVAC systems: installing air handlers and ducting in areas with limited overhead clearance

Piping supports: constructing unique plumbing supports and pipe racks for industrial facilities

OEM and bespoke framing: shelving, conveyor supports, and racks for lab equipment

FAQS

What distinguishes the Unistrut P1000 from the P4400?

The height P4400 is shallower at precisely 1 inch deep, whereas the P1000 is 1-5/8 inches deep. P4400 is lighter and performs better in confined locations because they have the same 1-5/8-inch width and 12-gauge thickness.

Is stainless steel an option for the P4400?

Indeed. For outdoor use, chemical industries, and food processing facilities that require robust corrosion resistance, we offer the P4400 in Type 304 and Type 316 stainless steel.

Are holes pre-punched in the P4400 channel?

There are several varieties of it. For simpler mounting and adjustment, you can purchase it as a solid channel or in slotted/perforated versions (such as the P4400T or P4400HS) with factory-punched holes and slots.

How can I link or combine pieces of Unistrut P4400?

Channel is put together without the need for welding. You can use standard spring nuts, hex bolts, and Unistrut fittings like angle brackets and splice plates to connect the sections, making it quick to install and easy to change on-site.

How can I ask Abhay Steels for a quote?

Call our Mumbai office or send an email to sales@abhaysteels.com. We will provide you with a competitive price for your project if you provide us with your lengths, material finish, and quantity.
